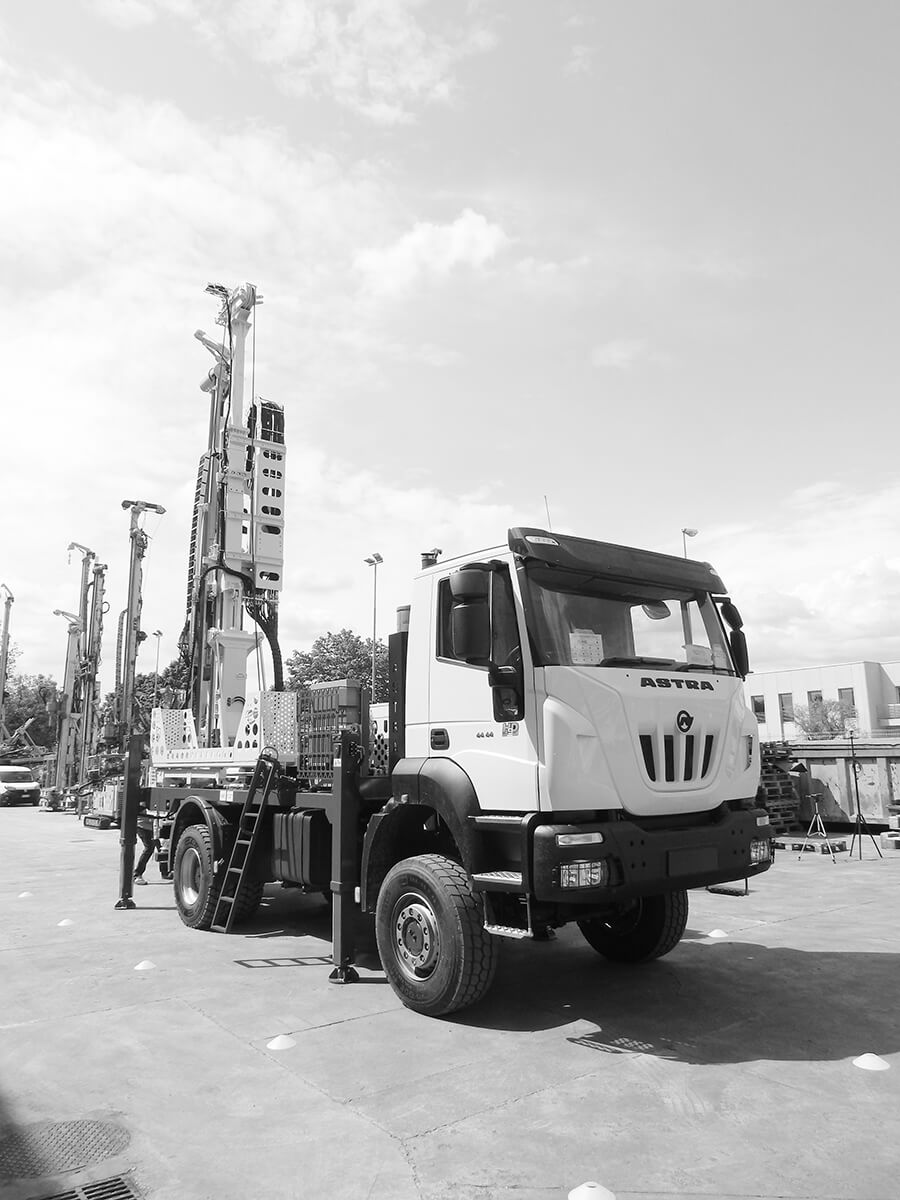

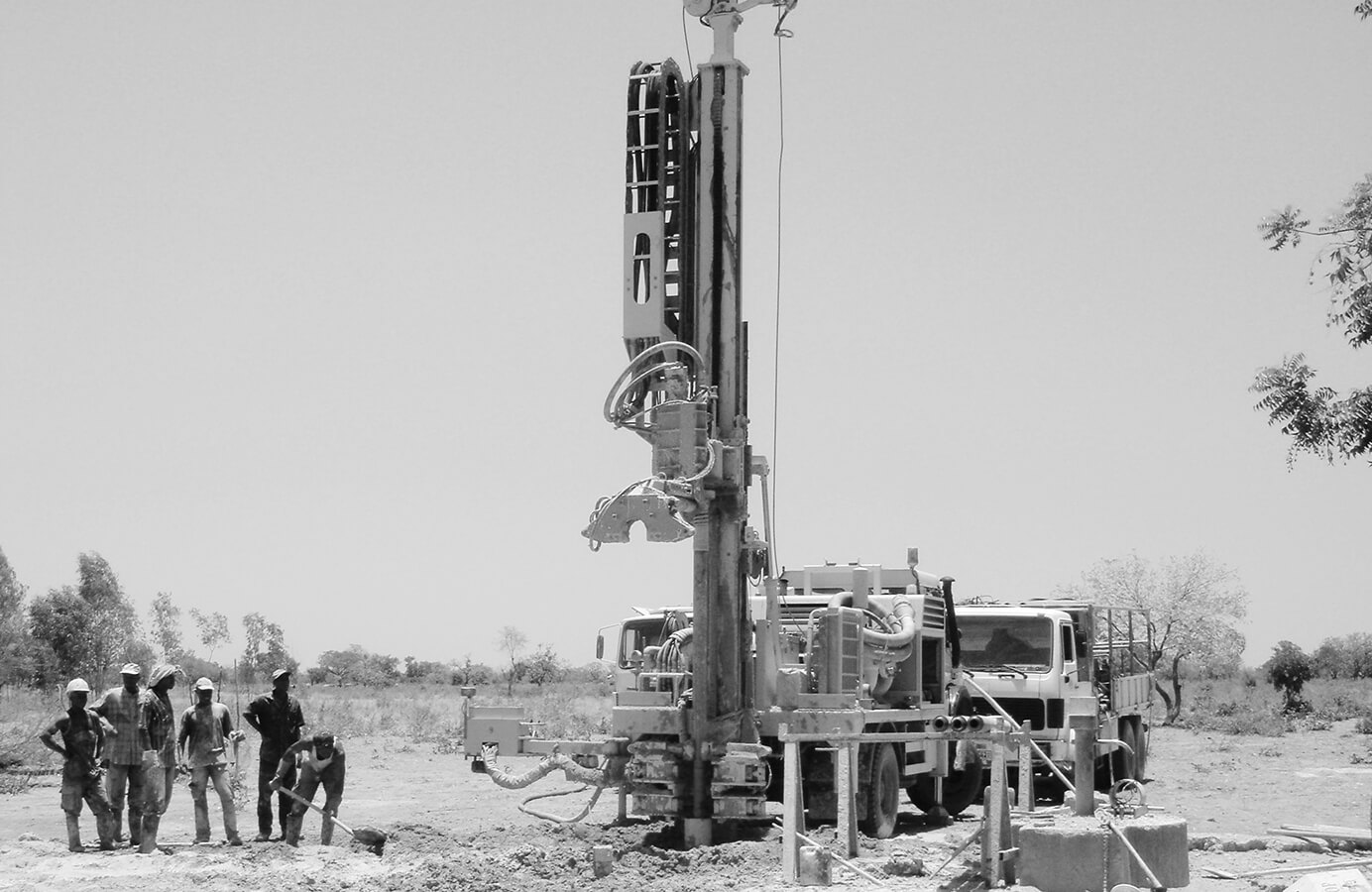

CX-T 10
Change unit:
/
|
Truck axle configurations |
4 x 4 (2) | 4 x 4 (2) |
|
Engine Power |
119 - 140 kW | 160 - 188 HP |
|
Emission Level |
Stage 3A/Tier 3 Stage 5/Tier 4f |
Stage 3A/Tier 3 Stage 5/Tier 4f |
|
Retract force |
9.000 daN | 20,233 lbs |
|
Feed force |
6.500 daN | 14,613 lbs |
|
Feed stroke |
4.000 mm | 13' 1" |
|
Rotary max torque |
13.000 Nm | 9,588 lb*ft |
|
Rotary max speed |
290 rpm | 290 rpm |
|
Clamping range |
45 - 365 mm | 1" 3/4 - 1' 2" |
|
Weight range |
10 - 12 t | 22,046 - 26,455 lbs |
| Safety systems | ||
|---|---|---|
| Safety Protection Cage | ||
| Dust Diverter & Suppression Hood | ||
| Rod handling systems | ||
|---|---|---|
| Pipe Loader Arm | ||
