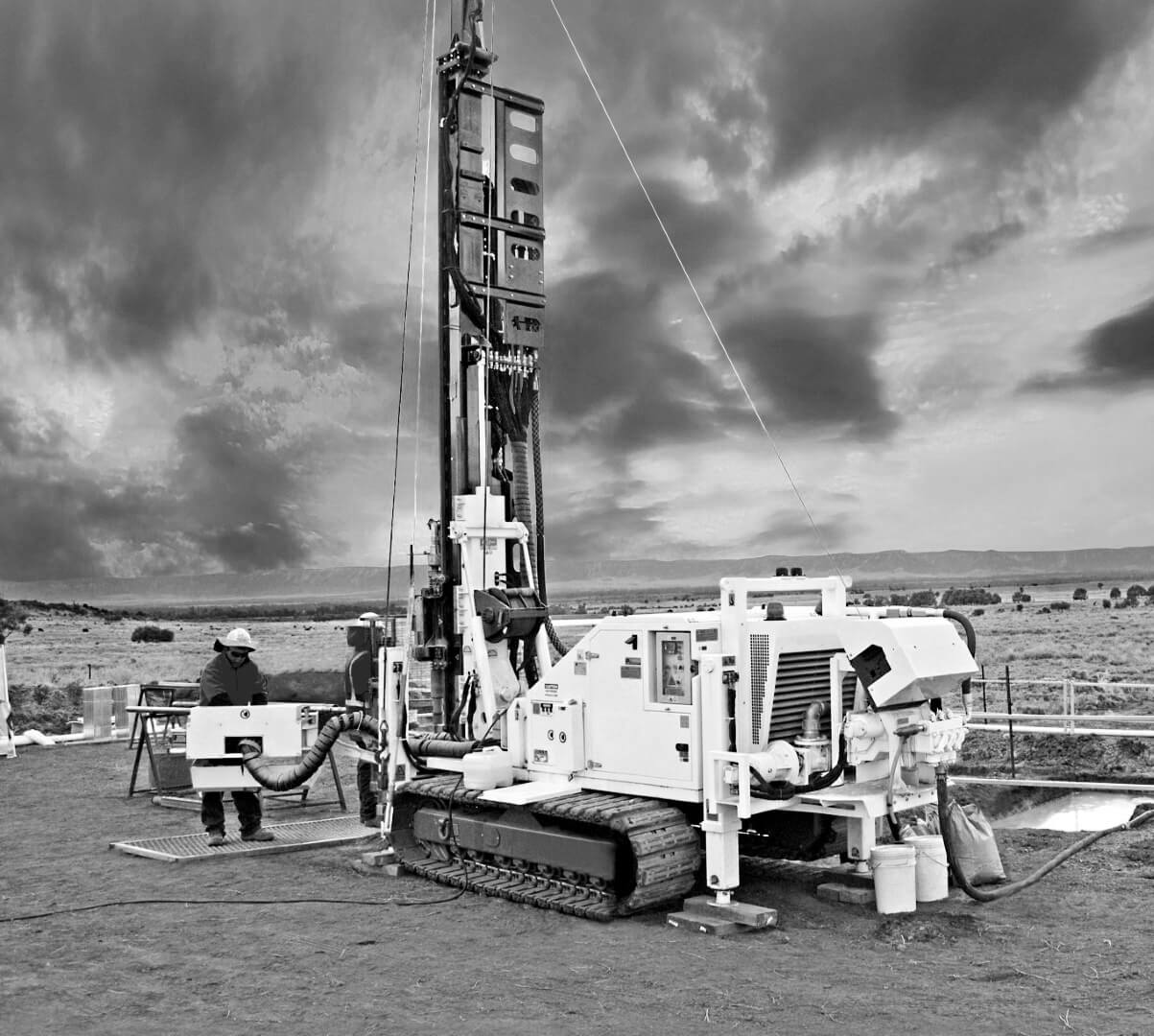

CX 12
Change unit:
/
|
Engine Power |
115 - 119 kW | 154 - 160 HP |
|
Emission Level |
Stage 3A/Tier 3 Stage 5/Tier 4f |
Stage 3A/Tier 3 Stage 5/Tier 4f |
|
Retract force |
12.000 daN | 26,977 lbs |
|
Feed force |
6.500 daN | 14,613 lbs |
|
Feed stroke |
4.000 mm | 13' 1" |
|
Rotary max torque |
8.350 Nm | 6,159 lb*ft |
|
Rotary max speed |
1.500 rpm | 1,500 rpm |
|
Chuck passage |
124 mm | 4" 7/8 |
|
Fluid Circulation Pump |
142 Lt/min - 70 bar | 37.5 gpm - 1,015 psi |
|
Wire-line winch |
1200 | 3,937' |
|
Max pull up force |
10 kN | 2,205 lbs |
|
Weight range |
10 - 12,5 t | 22,046 - 27,558 lbs |
| Safety systems | ||
|---|---|---|
| Safety Protection Cage | ||
| Radiocontrol | ||
| Rod handling systems | ||
|---|---|---|
| Pipe Loader Arm | ||
